Boost Factory Universal 3-Port MAC Valve Boost Controller Kit with Multiple Fitting Options

Description

Part number: 35A-AAA-DDBA-1BA

Brand: MAC
Type: 3 port solenoid
12 volts
5.4 watts ,25.4 ohm coil (measured), .45 Amps@12 volts
Full vacuum to 120 psi capable.
10-30 HZ compatible, other ranges suitable depending on application.
PWM driven (Pulse width modulation)

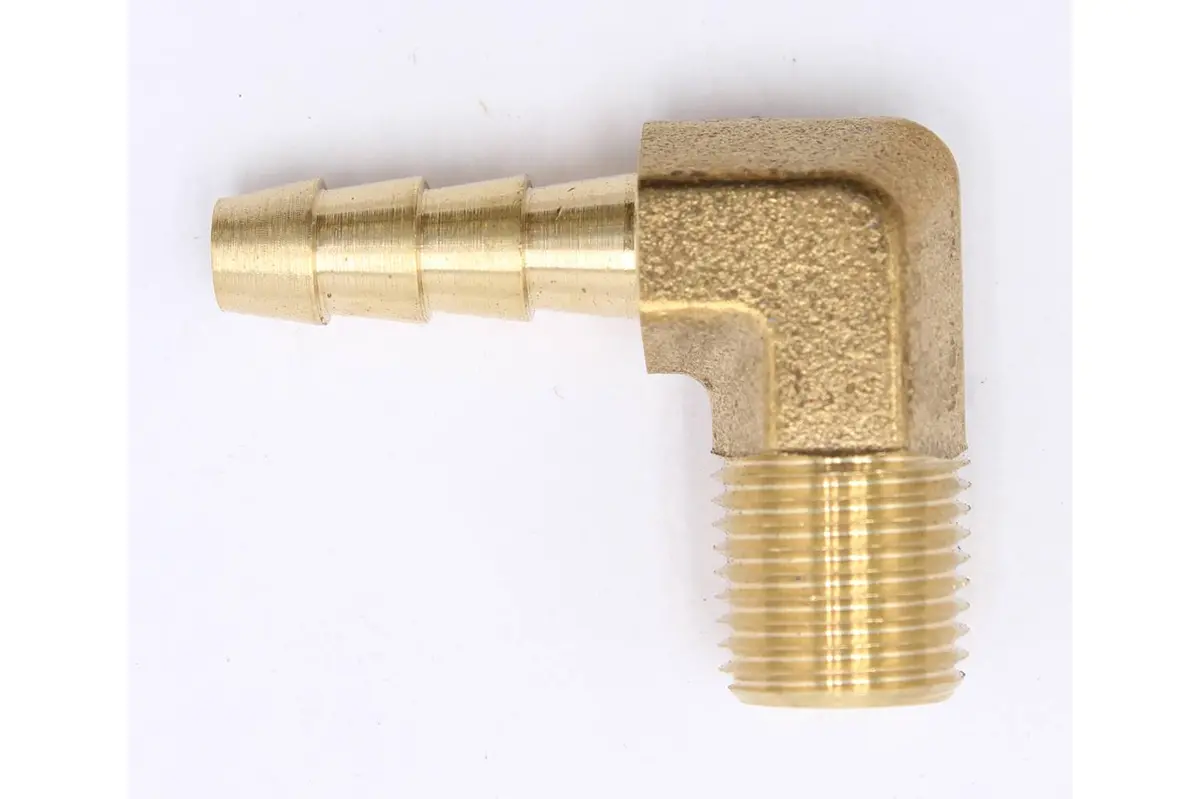

Note Image SHOWS 3/16″ Brass Fittings. see other images for fitting examples

Includes:
2 Pin DTM Connector Kit *requires full round barrel DTM Crimpers for the best results*

MAC Valve

Select 2 Fittings of your choice and configuration,

Sintered muffler fitting
See preferable Boost Line Configurations when selecting straights or angle fittings!
