Ecumaster Wireless Racing Dashboard Kit

Description

Create your own wireless steering wheel switch panel with this new kit from ECUMaster! While ECUMaster does offer a ready to go wireless steering wheel panel in a bespoke carbon fiber housing there is not always a one size fits all solution for everyone. This kit allows you to create your own wireless switch panel with up to 8 switch/button inputs, 4 rotary switch inputs (8 positions), and 2 paddle shift inputs.

What’s in the Box:

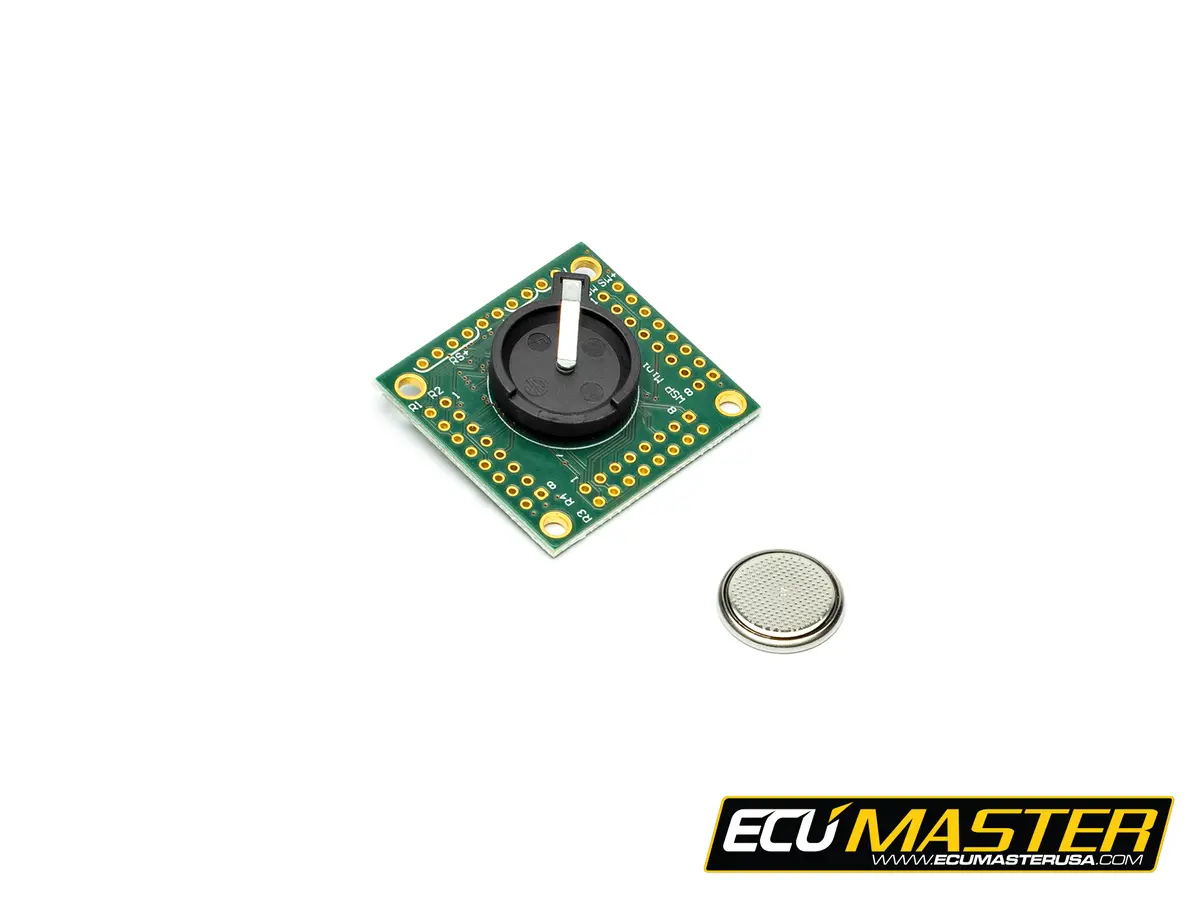

• Transmitter (PCB)
• Battery for transmitter
• Antenna for transmitter
• RF Receiver
• RF Receiver mating connector with terminals

RF Steering Wheel Kit specification:

• Temperature range AECQ GRADE3 (-40°C to +85°C)
• Battery type CR1620 (included) – Possible to connect external battery pod to extend battery life
• Wireless communication Radio Frequency
• Frequency range 2360 MHz to 2500 MHz
• Estimated battery life 260 days at rest at room temperature or 150,000 switches
• Weight 10 g
• Dimensions 36 x 34 x 12 mm
• Mounting mechanism 4 screws with a diameter of 3 mm
• Latency Below 20 ms
• Button inputs 8 with customizable functions (not included)
• Rotary switch inputs 4 with eight positions and customizable functions (not included)
• 2 Paddle shift inputs, paddle shifters (not included)
• Range (line of sight) 100 m at highest power setting
• Power levels 7
• Power range from -20 dBm to 4 dBm depending on power level selected

RF Receiver Specification:

• Temperature Range AECQ GRADE3 (-40°C to +85°C)
• Operating Voltage 6-22 V, immunity to transients according to ISO 7637
• CAN CAN 2.0 A/B – 125, 250, 500, 1000 kbps
• Dimensions 68 x 50 x 20 mm
• Weight 50 g
• Connector Deutsch DTM04-4P (terminal included)
• Cable length 20 cm
• Mounting mechanism 2 x M3 bolts
• Number of supported RF Steering Wheel Kits Up to 8

Additional Documents:

RF Steering Wheel Kit Manual
