Description

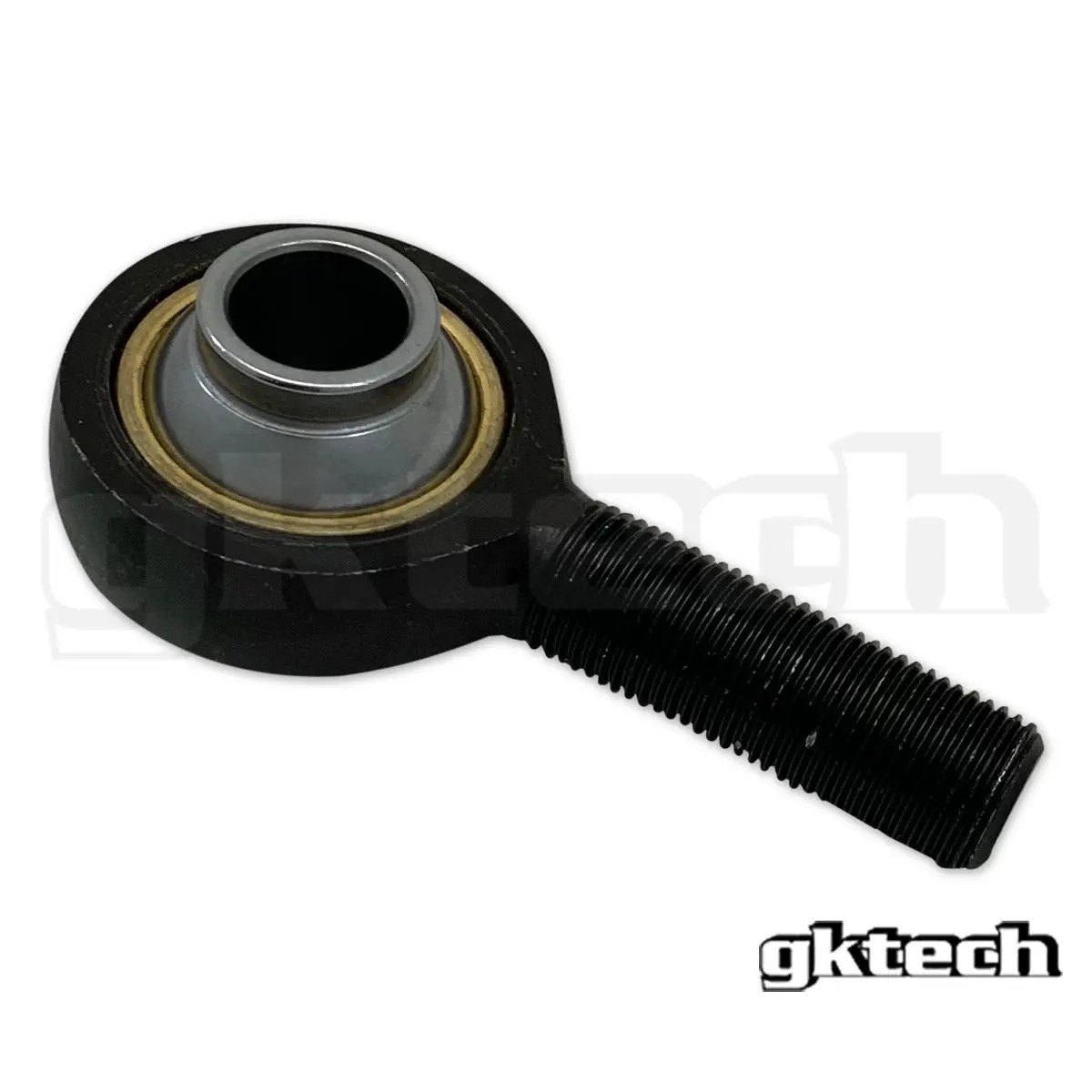

Replacement PCYML10TS tie rod end heim Used in the following GKTECH products:
M12/M14 tie rod ends (SKU = M125-TROD, M145-TROD, Z33X-SSTR, Z34X-SSTR, Z33X-TROD, GTRX-TROD)
Sold individually
PCYML10TS
| IMPERIAL | METRIC |
|---|---|
| ROD END BALL BORE SIZE | ROD END BALL BORE SIZE |
| 0.6250 in | 15.8750 mm |
| ROD END BALL WIDTH | ROD END BALL WIDTH |
| 1.3750 in | 34.9250 mm |
| THREAD LENGTH | THREAD LENGTH |
| 2.0000 in | 50.8000 mm |
| THREAD SIZE | THREAD SIZE |
| 5/8 – 18 UNF LH | 5/8 – 18 UNF LH |
| ROD END HEAD DIAMETER | ROD END HEAD DIAMETER |
| 2.0000 in | 50.8000 mm |
| ROD END MISALIGNMENT ANGLE | ROD END MISALIGNMENT ANGLE |
| 64 degrees | 64 degrees |
| ROD END STATIC LOAD CAPACITY (lbs) | ROD END STATIC LOAD CAPACITY (kg) |
| 30,290 lbs | 13,739 kg |
| ROD END MATERIAL | ROD END MATERIAL |
| Chromoly | Chromoly |
| LUBRICATION | LUBRICATION |
| PTFE lined | PTFE lined |
[“NISSAN R32 SKYLINE GTR”,”NISSAN R32 SKYLINE GTS-T”,”NISSAN R33 SKYLINE GTR”,”NISSAN R33 SKYLINE GTS-T”,”NISSAN R34 SKYLINE GT-T”,”NISSAN S13 CA18 240SX HATCH”,”NISSAN S13 CA18 240SX/SILVIA”,”NISSAN S13 SR20 240SX HATCH”,”NISSAN S13 SR20 240SX/SILVIA”,”NISSAN S14 240SX/SILVIA”,”NISSAN S15 SILVIA”,”INFINITI G35 SKYLINE”,”INFINITI G37 SKYLINE”,”NISSAN Z32 300ZX”,”NISSAN Z33 350Z”,”NISSAN Z34 370Z”,”TOYOTA GT86 ZN6″,”SCION FRS ZN6″]
